| Technical Specifications | |
| Size Range | 15 mm to 200 mm |
| Class | 150,300,800 |
| Design Standard | BS EN ISO 15761 |
| Testing Standard | API 598 |
| Face to Face | ASME B16.10 |
| Body | ASTM A216 Gr. WCB, ASTM A351 Gr. CF8/ CF8M/ CF3/ CF3M |
| Ends | Screwed , Socket Weld, Butt Weld End |
| Operation | Manual |
| Optional Features | IBR |

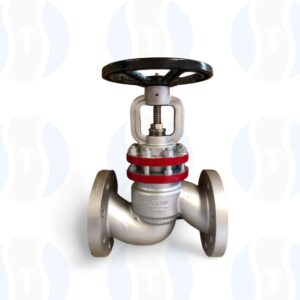

Piston Valve,150,80,WCB,FLANGED END
₹21,500.00
Cast Steel Globe Valve,150,25,WCB/410,FLANGED END
₹4,520.00
Piston Valve,800,15,A-105,SWE/SE
₹1,570.00
Piston valves are used primarily for saturated and superheated steam and hot water service in power plants, refineries, pulp and paper mills, etc. Specific applications include steam headers and manifolds, condensate manifolds, desuperheaters, steam trap isolation, etc.
Additional information
| class | 800 |
|---|---|
| delivery | 2 weeks |
| ends | SWE/SE |
| ibr-status | IBR |
| moc | A-105 |
| size | 15 |
